Every part on the canvas, drawn at true size. Open one to see its pins, its settings and how PinBench simulates it.

Category

All BoardsBasicsPowerSensors and inputOutput

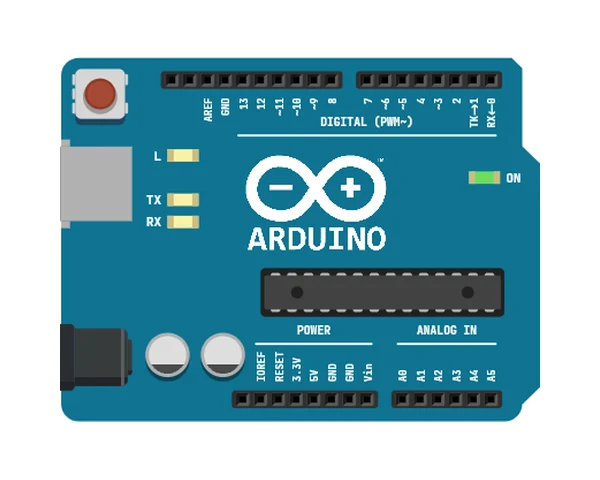

Arduino Uno The ATmega328P board most Arduino tutorials are written for, drawn at its real 68.6 × 53.4 mm. Boards
Raspberry Pi Pico W The RP2040 board with 40 castellated pins, lying across a breadboard's channel as the real one does. Boards
Half Breadboard A 30-row solderless breadboard with power rails along both edges. Boards

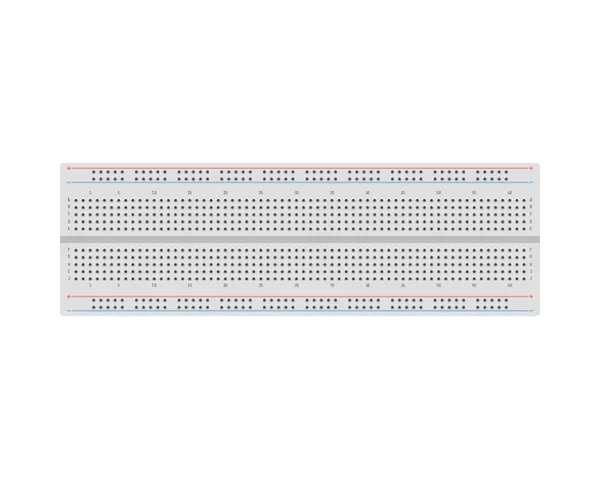

Full Breadboard The full-length solderless breadboard, for circuits that outgrow the half-size one. Boards

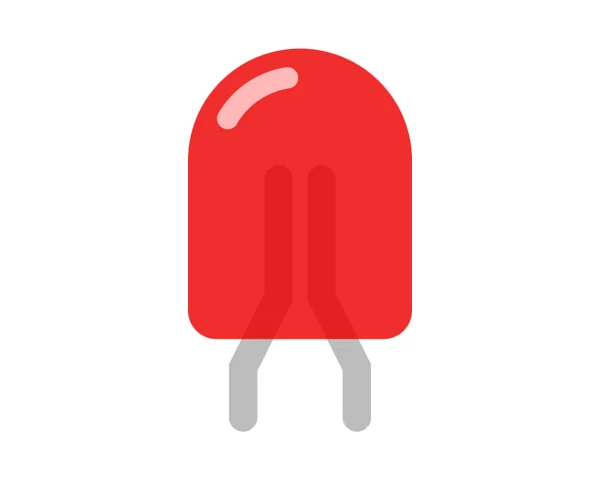

LED A 5 mm LED in seven colours, lit by the current that actually flows through it. Basics
RGB LED Three LEDs in one 5 mm lens, sharing a common cathode. Basics

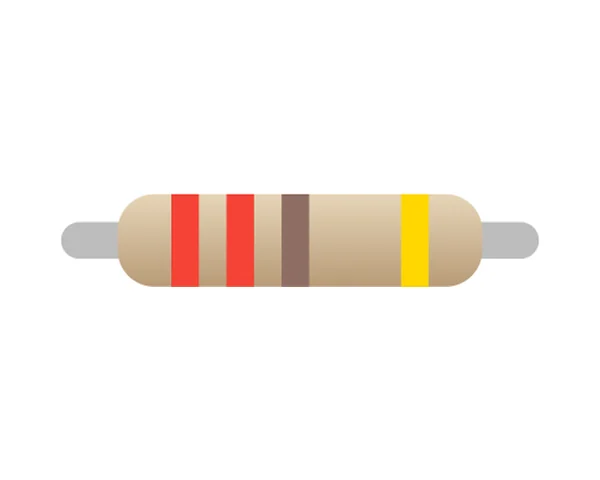

Resistor A through-hole resistor with colour bands that follow its value. Basics

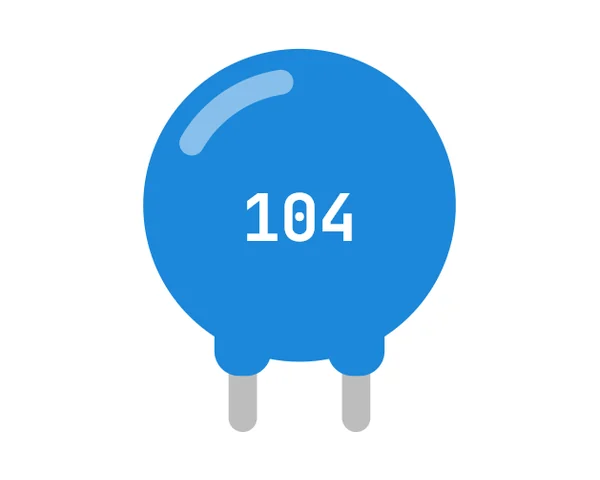

Capacitor A ceramic disc capacitor, printed with its value code. Basics
Electrolytic Capacitor A polarized aluminium electrolytic capacitor. The stripe marks the negative lead. Basics
Potentiometer A 10 kΩ rotary potentiometer, the usual way to feed analogRead() a value you can turn. Basics
Push Button A four-leg tactile switch, pressed on the canvas while the simulation runs. Basics
Slide Switch (SPST) A single-pole slide switch: on or off. Basics
Slide Switch (SPDT) A single-pole double-throw slide switch. The middle pin meets one side or the other. Basics
Switching Diode (1N4148) The small-signal switching diode in a glass DO-35 body. Basics

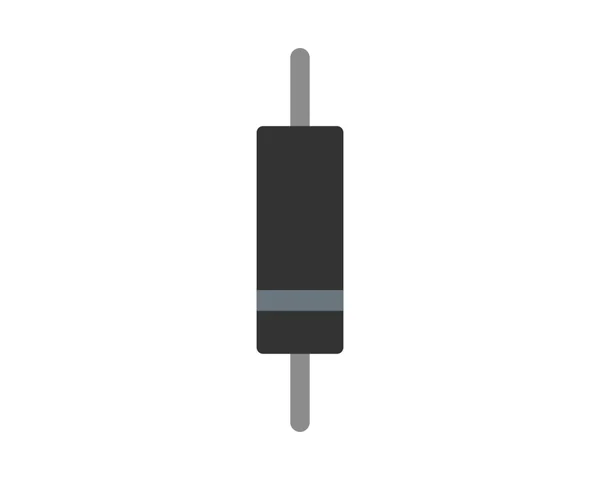

Rectifier Diode (1N4007) The 1 A general-purpose rectifier, for turning AC into DC and blocking a reversed supply. Basics

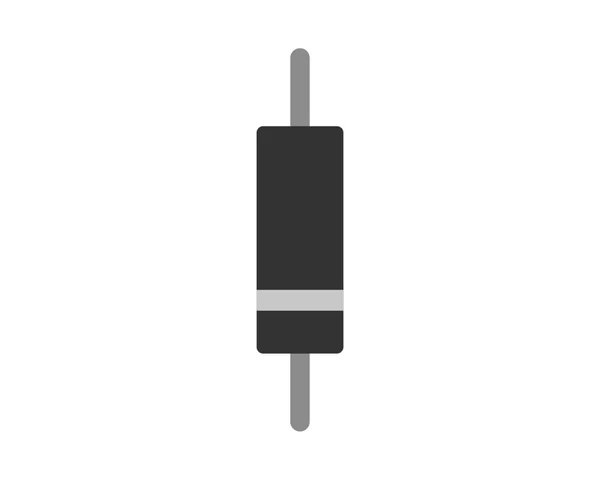

Schottky Diode (1N5819) A 1 A Schottky diode with a low forward drop. Basics

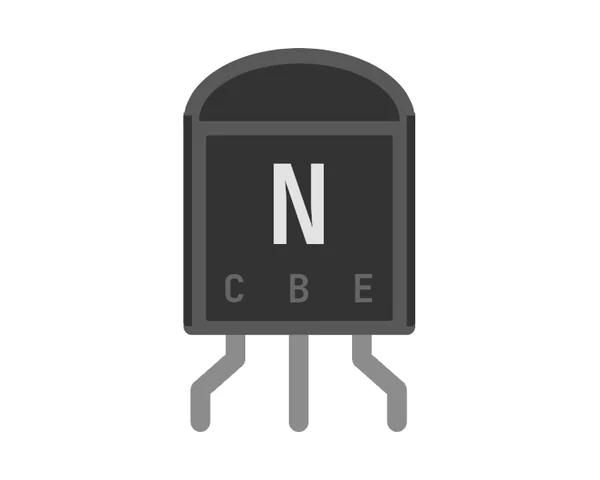

Transistor One part, seven transistors: bipolar, MOSFET and Darlington, in TO-92 and TO-220. Basics
Battery (9V) A 9 V PP3 battery with its snap clip, for powering a circuit off the board. Power
Coin Cell (CR2032) A 3 V lithium coin cell in its holder. Power

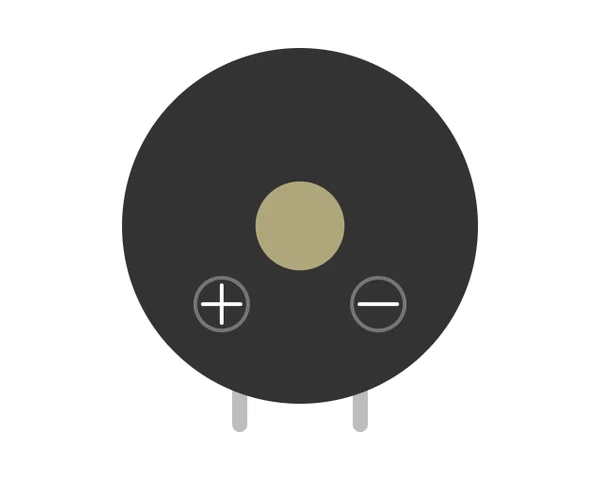

Piezo Buzzer A piezo buzzer for tone() and noTone(). Output

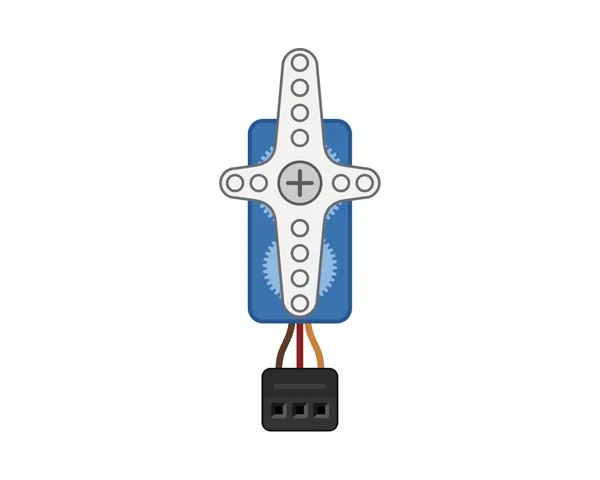

Servo Motor (SG90) The SG90 hobby servo, with its three-wire lead. Output
OLED Display (SSD1306) A 0.96″ 128 × 64 SSD1306 OLED on the I²C bus. OutputI²C

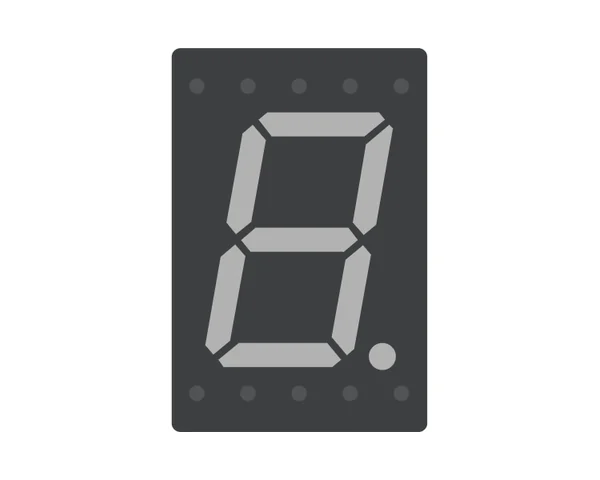

7-Segment Display A 0.56-inch common-cathode 7-segment display with a decimal point. Output

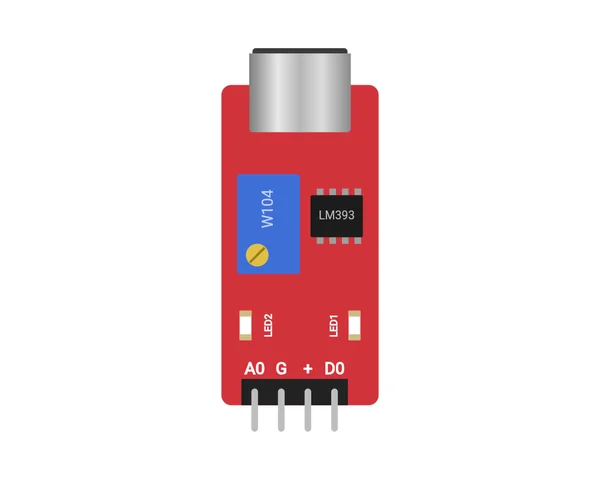

Microphone (KY-037) A KY-037 sound sensor module with digital and analog outputs. Sensors and input
Photoresistor (LDR) A light-dependent resistor: its resistance falls as the light rises. Sensors and input
Thermistor (NTC) A 10 kΩ NTC thermistor. Its resistance falls as the temperature rises. Sensors and input
Temperature Sensor (TMP36) An analog temperature sensor: 10 mV per °C on a 500 mV offset. Sensors and input

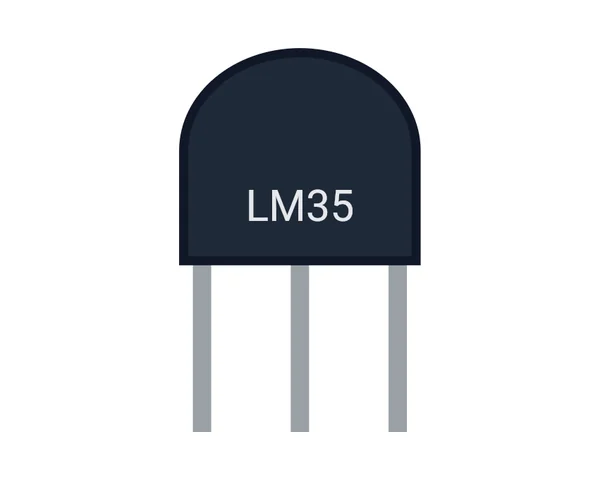

Temperature Sensor (LM35) An analog temperature sensor: 10 mV per °C from 0 V at 0 °C. Sensors and input
Temperature + Humidity (AHT20) An I²C temperature and relative humidity sensor. Sensors and inputI²C

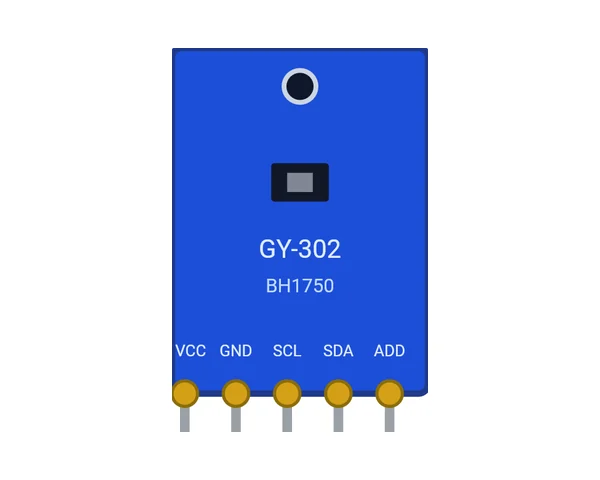

Light Sensor (BH1750) An I²C ambient light sensor on the GY-302 module, 1 to 65535 lx. Sensors and inputI²C
Accelerometer + Gyro (MPU-6050) A 6-axis motion sensor on the GY-521 module, over I²C. Sensors and inputI²C
PIR Motion Sensor An HC-SR501 style motion sensor whose output holds high after the motion stops. Sensors and input

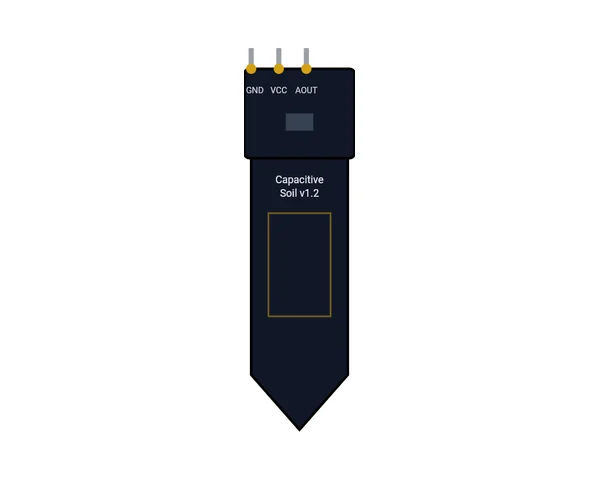

Soil Moisture Sensor A capacitive soil moisture probe with an analog output. Sensors and input
Real-Time Clock (DS1307) An I²C real-time clock module with battery backup. Sensors and inputI²C

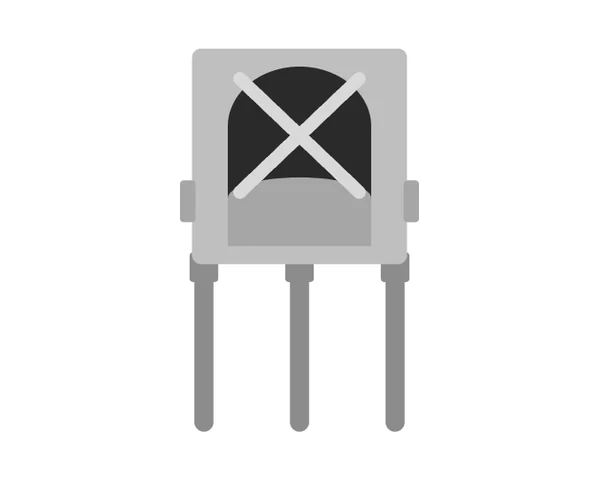

IR Receiver (VS1838B) A 38 kHz IR remote receiver, for decoding a remote with the IRremote library. Sensors and input

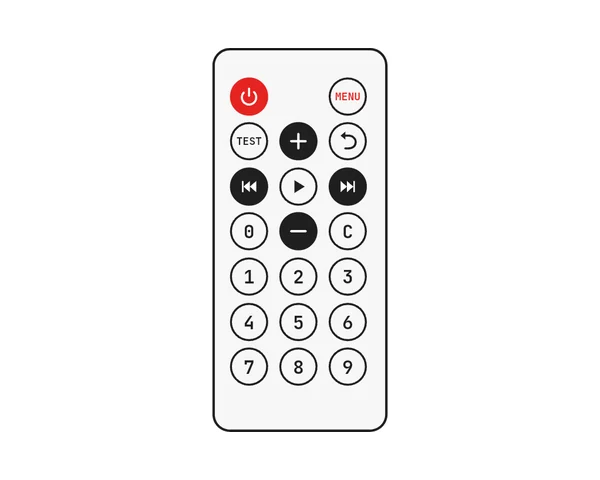

IR Remote A NEC remote control whose buttons you press on the canvas. Sensors and input
