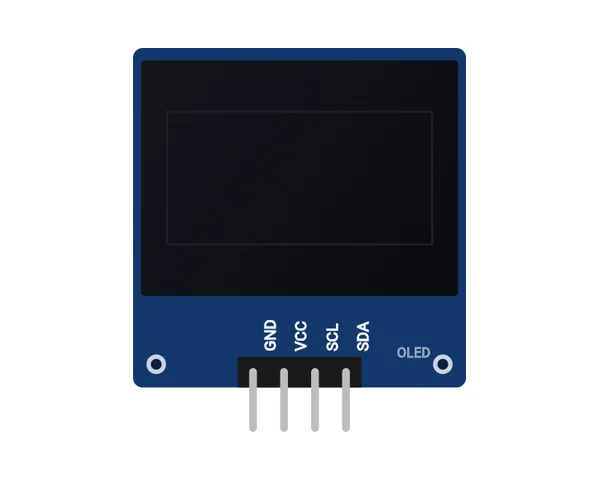

OLED Display (SSD1306)
A 0.96″ 128 × 64 SSD1306 OLED on the I²C bus.
- Category
- Output
- Interface
- I²C, 0x3C
Pins
| Pin | Role | Notes |
|---|---|---|
GND | Ground | |
VCC | Power | 3.3 to 5 V |
SCL | Input | I²C clock, A5 on an Uno |
SDA | Signal | I²C data, A4 on an Uno |
Settings
Change these in the part's properties on the canvas.
- I2C Address
- 0x3CThe address it answers on
- Pixel Color
- WhiteWhite, blue or yellow
How PinBench simulates it
- The SSD1306 controller answers on the I²C bus, so libraries like Adafruit SSD1306 drive it as they would a real one.
- A module wired correctly but addressed wrongly stays dark, which is the commonest OLED problem in the real world too.
- The pixel colour is cosmetic: the panel is monochrome either way.
