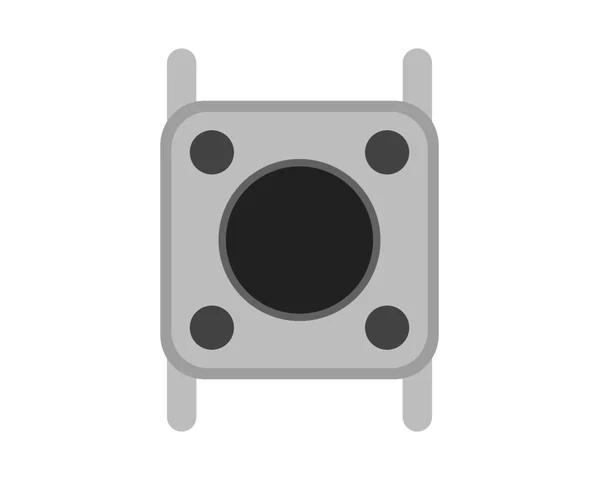

The Push Button as drawn on the PinBench canvas.

Push Button

A four-leg tactile switch, pressed on the canvas while the simulation runs.

Category
Basics
Try this part All parts

Pins

PinRole
Leg 1Signal
Leg 2Signal
Leg 3Signal
Leg 4Signal

How PinBench simulates it

  • Press it with the pointer during a run and the sketch sees the change on its pin.
  • It is a contact in the circuit, so it needs a pull-up or pull-down like the real one.

Try it in an example.
